OSL reader for myOSL dosimeter based on BeO

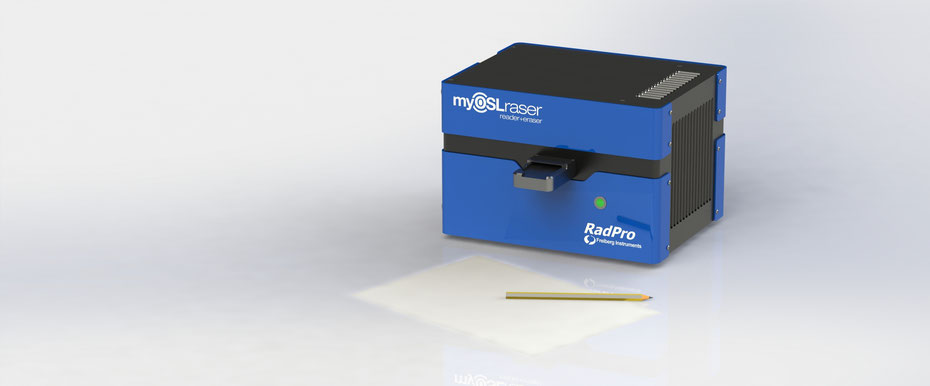

OSL reader – myOSLraser – basic unit

myOSLraser -most advanced OSL system for personal dosimetry

The OSL reader myOSLraser (reader + eraser) is a manual device for evaluation of its single OSL dosimeter called “myOSL” dosimeters. Equipped with a feeder it automatically processes up to 200 OSL dosimeter per loading. The myOSLraser is the only OSL reader for personal dosimeters which also provides the capability of erasing the residual signal from the OSL detectors in the same device which can be activated or deactivated if a second readout is requested in the operating software myOSLstudio.


  • automatic drawer for single OSL dosimeters
  • manual or automatic process of up to 200 OSL dosimeter
  • manual system upgradeable to automatic system at any time
  • fast OSL read outs (few seconds)
  • erasing function selectable according to the last dose measurement
  • easy operation
  • self check diagnostic
  • remote control (IP device)
  • no consumables like gas


automatic OSL reader for myOSL dosimeter based on BeO berillium oxide

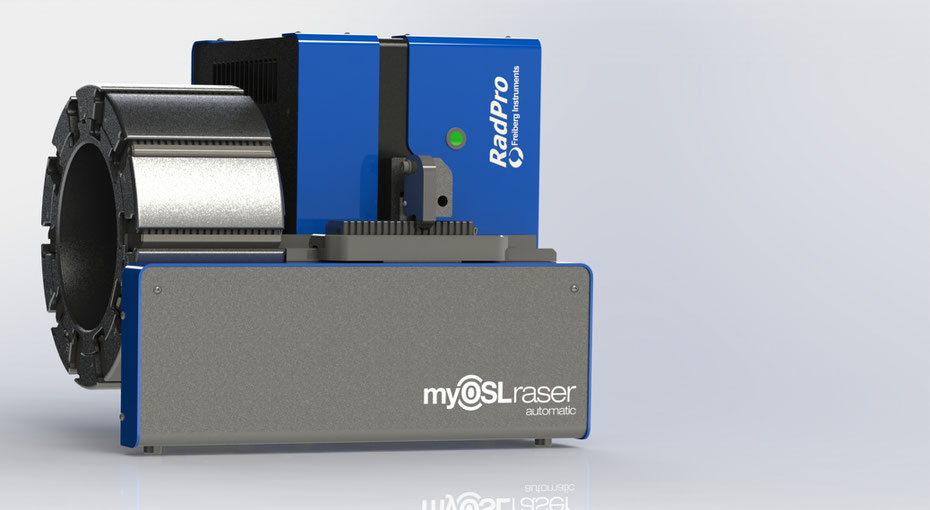

OSL reader – myOSLraser including automatic feeder

Technical data


OSL reading YES
Erasing function YES
LED stimulation blue, 480nm
Reading time per dosimeter: <10s
Processing speed per hour: >120/h including erasing
Test light stability: better 1%/a
Power supply voltage: 100-240V, 50/60Hz
Dimension: 300 x 230 x 200 mm
Weight: 13kg
automatic OSL reader and OSL eraser for myOSL dosimeter
myOSLraser automatic
