CT Ion Chamber 10 cm



Ionization Chamber for CTDI Measurements

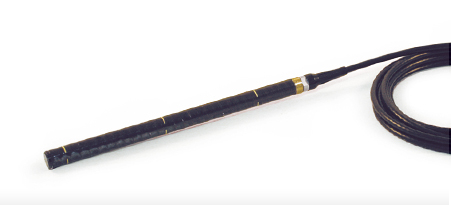

The DCT10 is a rugged, cylindrical pencil-shaped air ionization chamber for CTDI measurements. The CT chamber is intended for measuring and monitoring the exposure output level of CT scanners in a phantom or free-in-air.
CT dose index, CTDI, can be measured in accordance with IEC 61223-2-6.

The DCT10 can be connected via Chamber Adapter to the Piranha or Cobia to measure CTDI.

The DCT10 RS can be connected directly to the Barracuda (via an electrometer module supporting bias) to measure CTDI.

Art. No. 9705111-00

Ranges with Piranha & Cobia Flex
(Chamber Adapter required)

Air kerma rate 0.8 mGycm/s to 8 Gycm/s
Inaccuracy ±6 % or ±0.08 mGycm/s
Connector type LEMO triaxial
Cable 2 m, low noise triaxial
Active volume 4.9 cm3
Active length 100 mm
Inner diameter 8.0 mm
Typical leakage ±4 fA
Radiation quality 80 – 150 kV
Sensitivity 400 nC/Gy or 3.5 nC/R
